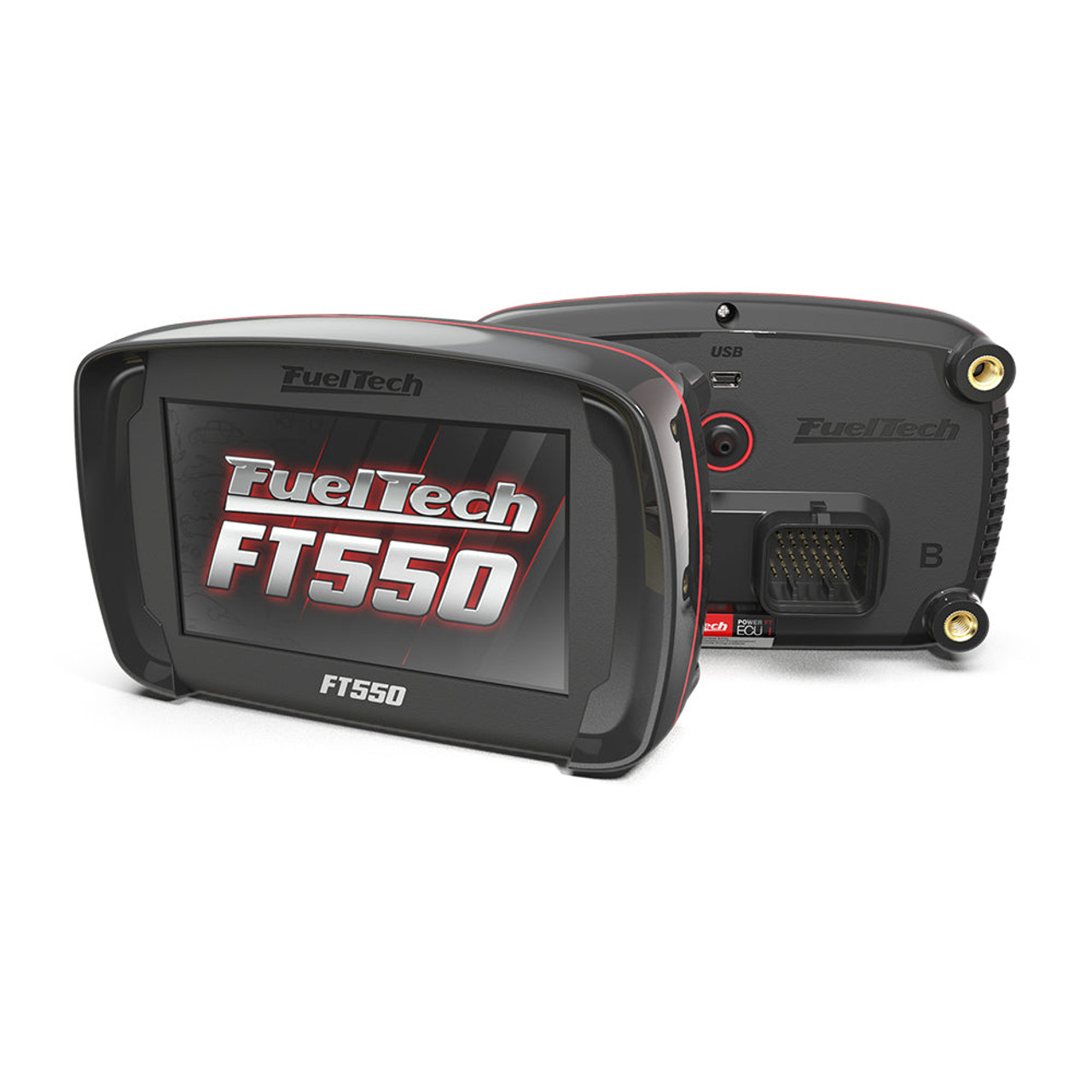

FuelTech FT550 EFI System ECU

•   Otto cycle engine control for 1, 2, 3, 4, 5, 6, 8, 10 and 12 cylinders
•   Wankel engine control (rotary) for 2, 3 and 4 rotors
•   Full sequential ignition control, semi-sequential and multipoint control
•   Ignition control through trigger wheel or distributor
•   Full sequential ignition or wasted spark
•   Closed loop injection through oxygen sensor (wide band lambda sensor)1
•   AMP SUPERSEAL automotive connectors
•   Electronic throttle body Control (Drive-By-Wire)
•   Ignition timing and actuator based Idle control (electronic throttle body, stepper motor, or PWM valve)
•   Real-time adjustable maps on the screen and on the FTManager software (including internet remote tuning)
•   IP67 Waterproof sealed case made from polished ABS

• Differential input for RPM signal
• Cam sync input (including multi-teeth cam sync triggers)
• 14 input channels fully customizable – digital and analog (temperature, pressure, speed and position sensors, TPS, external MAP, buttons, keys, etc.)
    • 2 inputs with a high gain pre-amplifier usually used with a strain gauge sensor
    • Adjustable sensor reading scale
•   Built-in accelerometer and gyroscope
•   Internal MAP sensor of 7 bar (1 bar vacuum and 6 bar positive pressure)
•   1 USB port for computer and FuelTech software connection
•   2 CAN ports for FuelTech FTCAN 2.0 or FTCAN 1.0
    • FuelTech equipment: WB-O2 Nano, EGT-8 CAN, FTSPARK and SwitchPanel
    • Third party equipment: Racepak IQ3, VNET, AiM, etc)
    • OEM CAN partial compatibility with: C6 Corvette, C7 Corvette, 5th gen Camaro, 2009 Cadillac CTS-V

• Total of 24 general-purpose outputs: (all of which can be used for general accessories as fuel pump, thermatic fans, valves or injectors for BoostController, solenoids, etc.)
    • 12 open collector outputs: recommended for high impedance injectors (up to 4 injectors per       output) – it is possible to set up to 24 outputs using external FuelTech Peak and Hold drivers
    • 8 open collector outputs with a 5V current source: recommended for ignition control
    • 8 PUSH-PULL or HALF BRIDGE outputs: suitable for ignition, stepper motor control, electronic throttle body and to activate loads by 12V instead of ground

•   Built-in dashboard which displays different sizes and styles to be used with any existing equipment or sensor
•   Dashboard can have up to 4 screens with navigation through the screen or an external button
•   4 Virtual LEDs with combined activations for up to 3 conditions
•   Diagnostic panel with real-time information of all inputs, outputs, CAN, Status Events and engine diagnostics
•   Customizable splash screen allows the user to select the image shown on the FT550 start up screen

•   Full sequential injection for up to 20 outputs
•   Closed loop fuel control through O2 sensor (wide band sensor) 1
•   2 injection banks (Bank A and Bank B)
•   Primary map though MAP, TPS or RPM
•   Advanced 3D primary map with up to 32x32 cells (completely adjustable map index and size)
•   Simplified 2D map with up to 1x32 cells by MAP or TPS and RPM compensation of up to 1x32 cells (completely adjustable map index and size)
•   Injection time resolution of 0.001ms
•   Acceleration fuel enrichment and decay adjustment
•   Individual cylinder trim setting by MAP or RPM
•   Injector compensation through:
    • Engine temperature
    • Air temperature
    • Battery voltage (individual per bank)
    • TPS or MAP
•   Starting engine map with the engine temperature
•   Prime pulse table
•   Post start enrichment
•   Gear based fuel compensation
•   Gear shift fuel compensation
•   Fuel injection angle table
•   Injectors dead time compensation by battery voltage

1 An external wide band lambda sensor conditioner is required – FuelTech WB-O2 Nano, Alcohol-O2, WBO2 Datalogger, etc.)

•   Sequential ignition for up to 12 cylinders
•   Main map by MAP, TPS or RPM
•   Advanced 3D primary map with up to 32x32 cells (completely adjustable map index and size)
•   Simplified 2D map with up to 1x32 cells per MAP or TPS and RPM compensation of up to 1x32 cells (completely adjustable map index and size)
•   Injection angle resolution of 0.01°
•   Individual cylinder injection settings
•   Ignition timing compensation by air temperature
•   Ignition timing compensation by engine temperature
•   Gear based timing compensation
•   Gear shift timing compensation

•   Multiple session recording (files) logs up to 256 channels
•   Simplified mode with sample rate of 25, 50, 100 or 200Hz
•   Advanced mode allows individual settings for the sample rate with 1, 5, 25, 50, 100 or 200Hz
•   Automatic activation by RPM, through the screen or by external button
•   Data storage for up to 2h 50min (24 channels at 25Hz)
•   FTManager Datalogger Software for viewing and comparing logs

•   Integrated GearController: ignition cut for clutchless gear shiftings using a strain gauge sensor on the shifter
•   Integrated BoostController: wastegate valve pressure control
•   Idle speed control by timing, step motor, PWM valve or electronic throttle body
•   Deceleration fuel cutoff
•   Control of up to two thermatic fans activated by engine temperature and by the A/C, one of the outputs can drive a solid state using PWM control for soft starting the fans
•   Air conditioning control
•   Fuel pump control – with 6s prime
•   Variable Valve Timing (VTEC) control
•   Progressive nitrous control with fuel enrichment and timing retard
•   Generic duty cycle – PWM control
•   Boost activated output
•   RPM activated output
•   Different options for gear detection: RPM drop, analogic sensor, pulse, speed and gear ratio, by gear shift output or GearController
•   Start button. Allows to start and shut down the engine via a relay connected to an output switching the starter
•   Cold start with external reservoir
•   Differential control for Yamaha YXZ1000 UTV
•    Active traction control keeps wheel slip on ideal levels for maximum traction, thus adapting the available traction conditions as it seeks to maintain the programmed wheel speed difference by reading traction wheel and reference wheel speed difference
•    Hi-resolution engine power control method for RPM limiter. Controls timing on each cylinder and considerably reduces the turbo spool time in a transbrake/2-step rev limiter by keeping cylinders and spark plugs in conditions of maximum efficiency (they never get wet because they always fire). This allows user to lower the RPM limiter for launch or to make more boost at the same RPM and smoothen the 2-step limiter operation for less vibration
•   Pit Limit / Speed Limit
•    Generic outputs allow to configure up to 8 outputs by associating an input and setting up the way the output will be activated

Default sensors make the configuration easier:
•   Oil pressure
•   Fuel pressure
•   External MAP sensor (GM 1 bar, GM 1.05 bar, GM 2 bar, GM 3 bar, GM 3.05 bar)
•   Nitrous bottle pressure
•   Clutch pressure
•   Wastegate pressure
•   Brake pressure
•   Back pressure
•   Pan Vacuum
•   Transmission pressure
•   Torque converter pressure
•   Engine coolant pressure
•   Air temperature
•   Engine temperature
•   Exhaust gas temperature (EGT)
•   Transmission temperature
•   Intercooler temperature
•   Tire temperature
•   Track temperature
•   Clutch position
•   Shock position
•   Wheel speed
•   Turbocharger speed (up to 2)
•   Driveshaft RPM
•   Input shaft RPM
•   Ride height sensor
•   Pitch rate sensor
•   Flex Fuel sensor

• RPM limiter by fuel or ignition cut
• Shift light with sound and dashboard alert and/or external shift light
• Configurable safe mode options (RPM limit or engine shutoff):
    • High or low exhaust gas temperature (EGT), O2 closed loop limit, over boost, over rev, engine     temperature, duty cycle, oil pressure, fuel pressure and differential fuel pressure

FTManager has several tools and features:
•   Real-time map tuning
•   Change of the indexes of map tables
•   Save and read saved maps on the PC
•   Open maps from log files
•   Display fuel maps in ms, %VE, %DC and lb/h
•   Easy adjustments of time-based controls, organizing all in one screen and making it possible to use a log file as reference
•   Pro-Nitrous tuning aided by the stage chart
•   Allows converting maps of previous ECUs (FT200, FT250, FT300, FT350 and FT400)
•   Allows importing of some specific tables from other maps
•   ECU software upgrades
•   Splash screen customization
•   Engine operation in real time analysis through gauges and graphics with full screen option
•   Check alert and status messages
•   Test time-based features
•   Edit channels of the internal datalogger and their individual logging rates
•   Switch between basic (2D) or advanced (3D) maps
•   Edit the odometer and hourmeter
•   Reset the ECU to factory default
•   Recalibrate the touchscreen
•   View all devices connected to the CAN network
      • Receive warnings about new updates
      • Internet Remote Tuning allows connecting to another FTManager over the internet, for giving or receiving remote support

FTDatalogger
•   Download and analyze log files from PowerFT ECUs
•   Log files comparison
•   Mathematical channels
•   Data export to CSV file
•   Overlay functions easily show which cell the engine was running on for better data analysis:
      • Fuel tables overlay
      • Ignition tables overlay
      • Closed loop corrections: allows the user to see and apply all the corrections applied by the O2 closed loop on a log file
•   Select between light or dark background for better data visualization
•   Select if you want to show channels names and values on the chart or only in the preview             panel
•   Full timeline visualization
•   Set log zero time (tell the log time where the car launched)
•   Erase your ECU datalogger memory
•   Trim feature for log files – make then smaller and have only the information you need

FuelTech Datalog App:
•   Open your log files on your phone`s screen (up to 4 channels at the same time) - Android and iOS

•   Display brightness adjustment
•   LED lights brightness adjustment
•   Night and day mode selection by external switch and through the menu
•   Buzzer intensity adjustment for the interface and sound alerts
•   Memory for saving up to 3 different maps (possibility of map selection by external button)
•   ECU and Map protection password with individual full ECU or map password only, including map lock-up function that allows the current map to be saved and run exclusively on the actual ECU (ensured by serial code). Maintenance password protects the modification of the total hour meter and total odometer
•   PC communication through mini USB cable
•   Operation temperature: from -4 F to +158 F
•   Maximum power supply voltage: 20V

•   FT550 EFI: 5.75 x 3.62 x 2.13 in
•   FT550 packaging: 12.2 x 8.86 x 3.33 in
•   Shipping box: 13 x 9.45 x 5.9 in

•   FT550 EFI packaging without unterminated harness: 46 oz
•   FT550 EFI packaging with a 10 ft unterminated harness: 87.5 oz
•   FT550 10 ft unterminated harness: 41.5 oz
