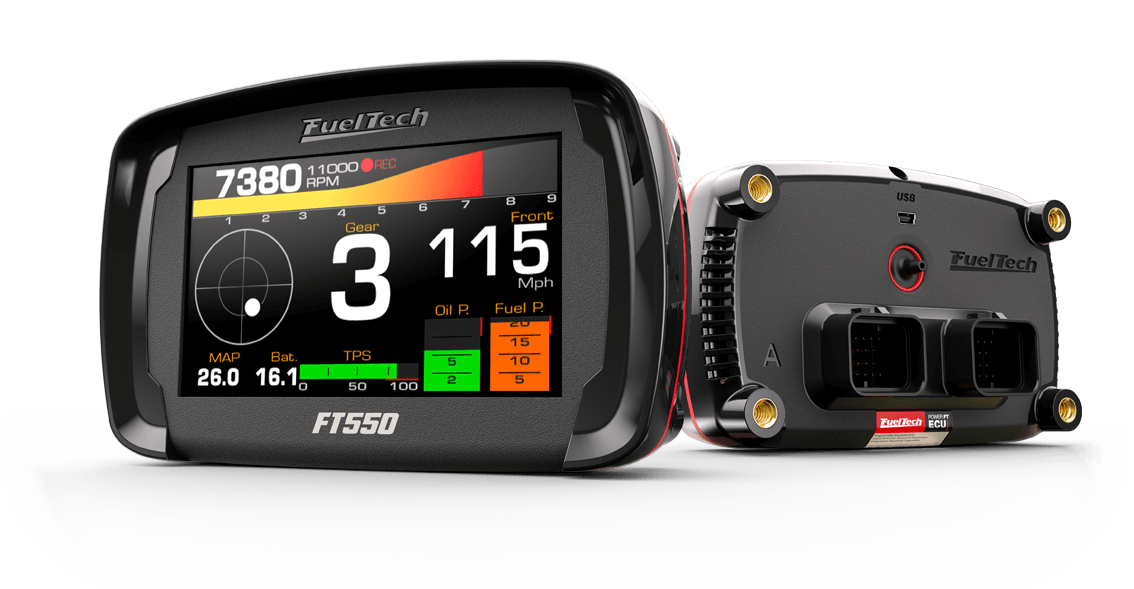

FuelTech FT550 EFI System with Yamaha Wiring Harness

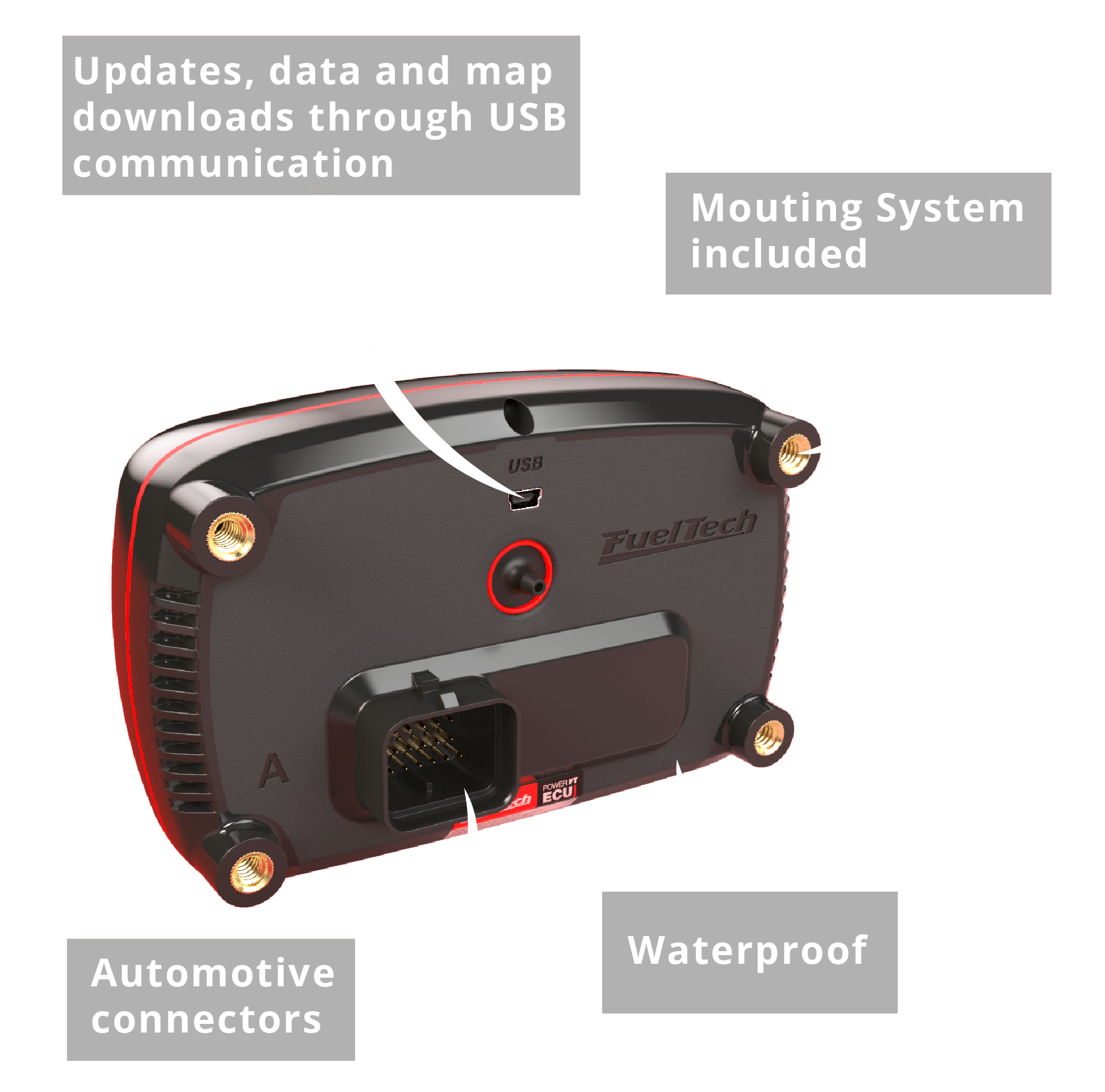

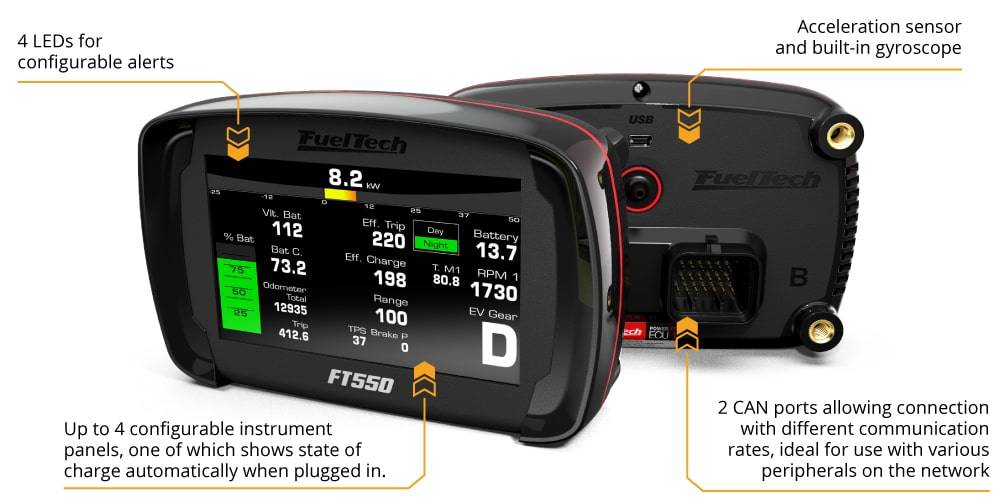

It also features a sturdy and high-quality waterproof plastic case, automotive connectors with 52 pins, USB communication and two CAN Bus ports, 14 inputs and 24 outputs that are fully configurable.

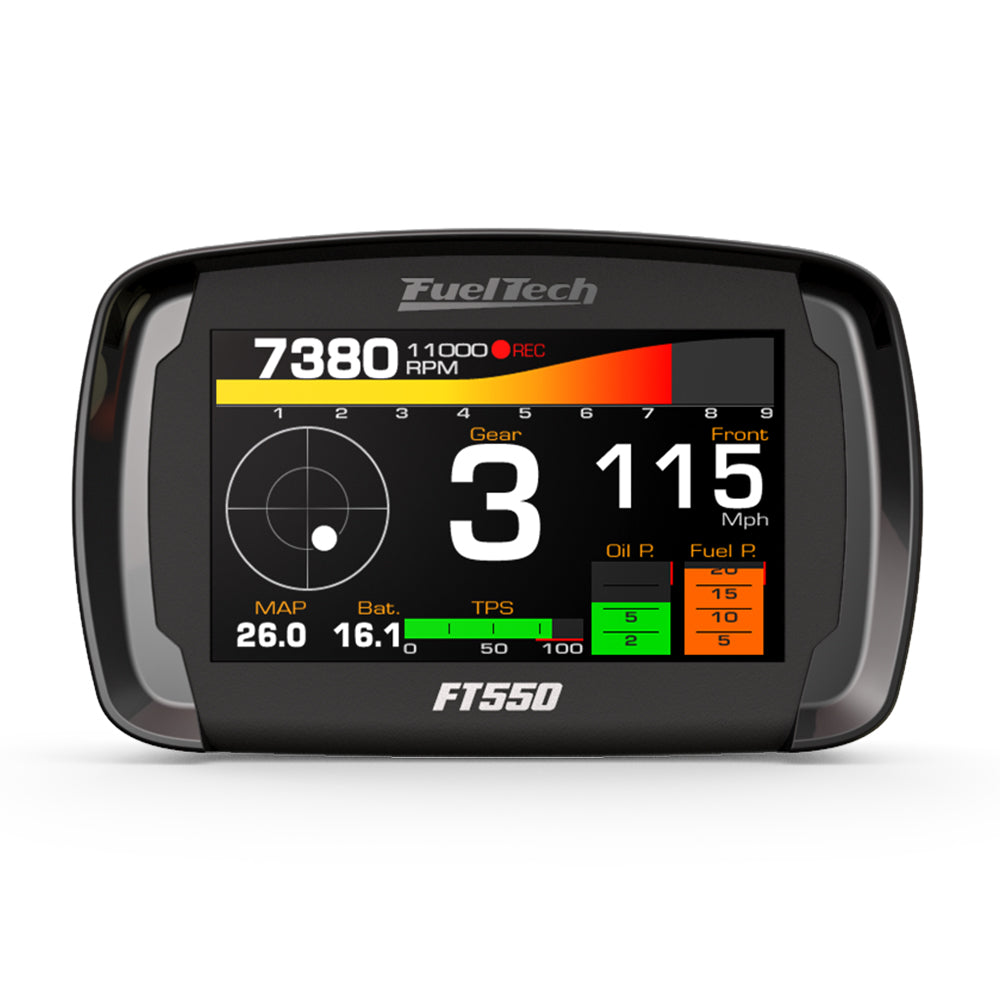

Features the same FT600 dashboard design, including features like engine start button, new inclinometer gauges and virtual LEDs for arrows, headlights and other functions. The screen allows editing the maps directly on the module, without the need for computer use, seamless integration between the ECU and Vehicle dashboard!

The FT550 ECU use the same FTManager software of the FT600, with all the exact same features and functionalities, including the newest update that allows the user to update their fuel map by applying the O2 closed loop corrections that took place from a log file. The map files of all the PowerFT ECUs are compatible with each other, meaning that you can upgrade ECUs and keep the same tune you had already.

Product intended for off road race-only, ground vehicle use only. FuelTech is not responsible for any misuse of these products. Check with your local authorities regarding highway laws in your area.

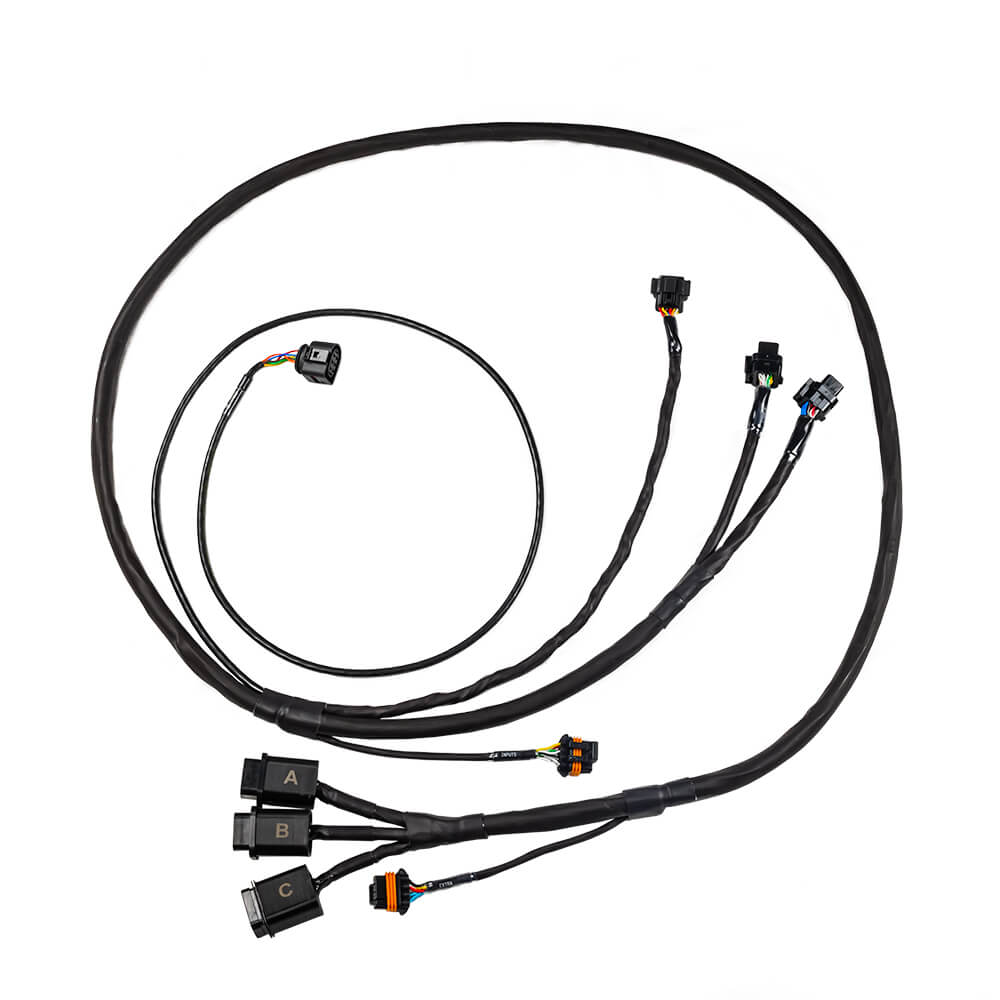

The Yamaha 1800 SVHO/SHO/HO adapter HARNESS, designed by FuelTech, is the perfect solution for FuelTech ECU installation using the PWC OEM harness.

The FT wiring harness has all necessary components for easy and fast FT550 ECU installation.

This wiring harness plugs directly to the OEM harness. There are also two spare extra connectors for inputs and output available in FT550. A connector for WB-O2 NANO or Nano PRO and a wideband O2 Sensor connector is also available.

Available with Yamaha Wiring Harness for 2008-2017 Yamaha 1.8L SHO/SVHO Models or for 2018-2024 Yamaha 1.8L SVHO Models
